PIPA PLUTO™

The PLUTO™ system is the latest product in long distance large diameter pipe inspection technology. The system offers HD CCTV inspection of pipelines up to a distance of 2000 metres, along with acoustic leak detection, pressure and temperature monitoring within a single survey. Unlike conventional ROV crawler systems, PLUTO can navigate around numerous bends and over obstacles due to the unique flexible design and in pipe cabling technique for pipe inspection.

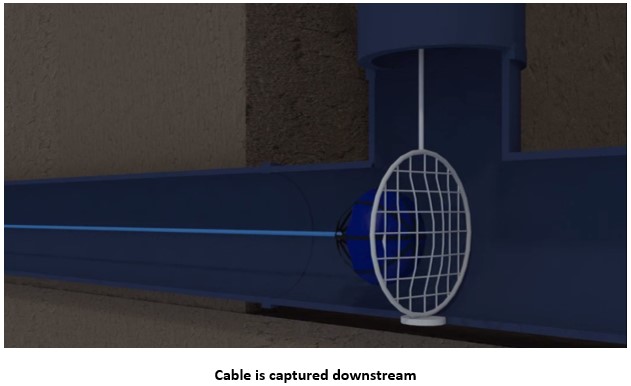

Used in conjunction with the Pipeline™ in pipe cabling system, PLUTO can be used to survey pipelines distances up to 2000 metres and in all sized large Trunk main pipelines, which is retracted through the pipeline during a recorded survey using a motorised cable drum.

The system requires pipe access points of 10 inch or above which could include a removed air release valve or similar.

The new approach to pipe inspection will revolutionise the industry, reduce the risk factor during inspections, and offer reliable and stable HD CCTV data.

Unlike other floating CCTV systems that disturb pipe sediment during a survey. The PLUTO surveys against the water flow direction and in turn offers a true condition assessment, with a clear and stable image as it remains tethered throughout the inspection.  Alternatively the survey can be completed in an empty pipeline including new pipe installations. The product is also ideal for ducting surveys prior to pulling fragile data cables, as it can identify joint and weld condition, along with debris ingress. The delivery cable is made from PU coated galvanised steel for all harsh environments, and safe to use in potable water mains.

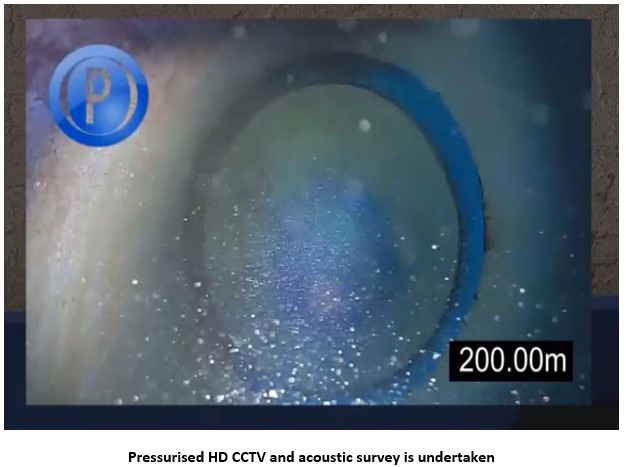

The unique product incorporates the latest in diving technology to offer the user pressurised or depressurised pipe inspections through a range of pipe diameters. The unit is self-powered and can record for up to 12 hours on a full charge.

The PLUTO system can enter via a DN250 strategic riser on a pipeline dependent on pipe size, removed air release valve or open duct section.

Additional Features

PLUTO also records amplified sound within a pipe for leak detection that can also be undertaken during a survey and offer a full leakage sweep during an inspection. The video and acoustic data can be analysed post survey to determine any interesting pipe features and leaks.

HD CCTV-Leak detection-Pressure monitor on board-Temperature sensors

During a PLUTO survey, true condition assessment can be undertaken to confirm visual pipe condition, detect leaks, confirm pressure drops, and highlight risks on low temperature pipe area zones.

All of the data can be submitted to clients in a detailed data report, all obtained through a single survey.

Technical Specification Camera

• Full HD Video Resolution 1080p (1920×1080, 30 fps)
• 170° optical fisheye lens
• Pressure rated 20 Bar
• Digital Video Stabilization
• up to 720 minutes battery power
• 64 GB Micro-SD Card

System Technical features

Camera module: pressure rated 20 Bar

Light modules: pressure rated 20 Bar

Hydrophone: Ultra responsive hydrophone for leak detection

Pressure sensor: Sensors to monitor pressure drops within a pipeline

Temperature sensor: Monitor low temperate zones within a pipeline

Housing: 3 Part carrier units neutrally buoyant
Memory Slot: for Micro-SD Card up to 64 GB (Class 6)
Data format video:  MOVFILE
System requirements: PC: MS Windows XP / Vista / Windows 7 | Mac 10.6.6
Connectors: Lemo hp
Battery Life: Video up to 720 minutes with Micro-SD card 64 GB/Class 6
Power: Rechargeable Lithium-ion batteries in separate carriers
System Dimensions: 200x1800mm

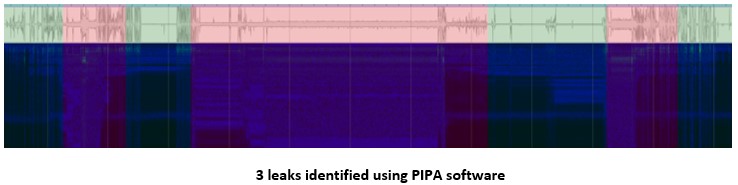

PIPA Acoustic Software for analysing and recording leakage

PIPA has developed a user friendly software, to enable the operater to record pipe inspection acoustic data, and also to analise the information on or off site in the fraction of the time of listening to the data. The software also identifies leak patterns and displays these on spectographs for client reporting. Pipe inspection and leak detection is a specialist service, and all data should be studied as part of the survey procedure by a dedicated team member or report analysist.

System comprises:

• Motorised delivery cable drum with encoder with spare motor pack
• Manual cable drum
• 2000 metre umbilical cable with spare 2000 metre cable
• Flexible 3 part camera housing with COB lights
• Unique launch and retrieval system with cameras
• Capture net and seal housing
• 2 Tripods and cable guides
• Launch delivery drums
• VDU Control box
• Battery pack
• Hydrochute set and accessories
• Seal set, crimps and accessories
• Chlorination set and accessories

The PLUTO system is a high quality PIPA product designed, developed and manufactured in the UK. For more information please contact sales@pipa-uk.com
