Hydrocam STM

Hydrocam STM Water Pipe CCTV Inspection System

Fully pressure rated and chlorinated camera system with seal arrangement and recording station for video capture and encoder text overlay.

The unique micro camera enters a pipeline via traditional style fire hydrants.

Suitable for use in pipe sizes from 50mm and above. This system consists of a moulded 23mm high resolution colour camera head – with scratch proof sapphire lens glass; high intensity, white LED lighting; a range of centralising skids and a robust coiler frame – with 50 metres of 12mm flexi push rod. This connects to a Compact Control Box – a rugged military spec box that has an integrated 15″ flat screen monitor and keyboard controls and records directly on to portable memory USB drive.

The system comes complete with on-screen meterage overlay, text generator and will operate at 240v AC with integrated rechargeable batteries for use where no mains power is available.
Control box operating temperature: from -20 to +40 degree Celsius. Camera water temperature: from -5 to +40 degree Celsius

System comprises:

  • Portable splash proof control box with USB recording device (IP67)
  • 3 metre connecting lead
  • 50 metre flexi rod cable
  • Ruggedized coiler cage with encoder unit
  • Seal housing with chlorination port for use in potable water
  • Sponge swab set

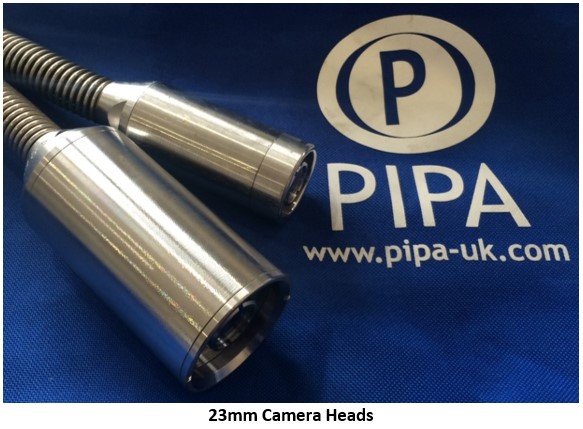

  • 23mm stainless steel camera head
  • Centralising skid for camera
  • Centralising skid for cable
  • Spare seal set package
  • Stainless steel standpipe (316) with vent (double quick release)
  • Lead and seal carry case
  • Standpipe Bag
  • Drum Bag
  • Potable passport

Specifications

Camera Size 23mm (DN50 Connection)
Pressure rated 12 BAR (IP68)
Suitable for pipe size 50mm and above
Reel length 50 metres
Rod type 12mm flexi pushrod (other rods available)
Recorder Portable memory USB drive

23mm CAMERA MODULE SPECIFICATIONS

  • Sapphire Lens: 3.6mm
  • Image Sensor: 1/4” Colour CCD
  • IP Rated 68
  • Video System: PAL
  • Pixels: 510×492
  • Resolution: 360 TV Lines
  • Illumination: 0.2 Lux at f1.2
  • Storage Temp: -30 to 60 degree C
  • Working Temp: -10 to 45 degree C
  • Power Supply: DC 6 -12v
  • Current: 80mA max
  • Waterproof Pressure tested 12 BAR
  • Dimensions (LxW): 150mm x 23mm
  • Weight: 470g

 All PIPA products are manufactured using MIC compliant materials and are supplied with a PIPA potable passport for service history and hygiene verification.

For more information on the Hydrocam STM please contact sales@pipa-uk.com
