Flowrider Lite™

Flowrider Lite™ Water Pipe CCTV

Inspection and Leak Detection System

Fully pressure rated camera system, acoustic sensor with cable seal arrangement and recording station for video capture and encoder text overlay.

Suitable for use in pipe sizes from 8 inch and above. This system consists of a fused 65 mm high resolution colour camera head – with water safe lens; high intensity triangular COB lighting system; ultra-responsive hydrophone system with booster PCB; centralising skid and a robust coiler frame – with 275 metres of 12mm semi-rigid neutrally buoyant push rod cabling. This connects to a compact control box and keyboard controls and records directly on to portable memory hard drive.

The system comes complete with on-screen meterage overlay, text generator and will operate at 240v AC with integrated rechargeable batteries for use where no mains power is available.

The Flowrider Lite™ also has a trace feature port for locating the sensor within a pipeline.

System comprises:

  •  Fully portable control box with hard drive recording device
  • 3 metre connecting lead
  • Signal trace lead for mains tracing
  • 275 metre semi rigid rod cable
  • Magnet release system
  • Ruggedized coiler cage with encoder unit
  • Seal housing with chlorination port for use in potable water
  • Cable protection puck and rod set
  • Sponge swab set
  • 1 self-fix camera head
  • Spare camera sensor internals
  • Centralising skid for camera
  • Hydrochute set
  • Spare seal set package
  • Standpipe with vent (double quick release)
  • Camera case
  • Lead and seal carry bag
  • Standpipe bag
  • Drum bag
  • Potable passport

Specifications

Camera Size  65mm COB light and acoustic sensor (hydrophone)
Pressure rated 12 BAR
Suitable for pipe size 8 inch and above
Reel length  275 metres
Rod type 12mm semi rigid neutrally buoyant pushrod
Recorder  Portable memory hard drive

Related Products

PIPA Software

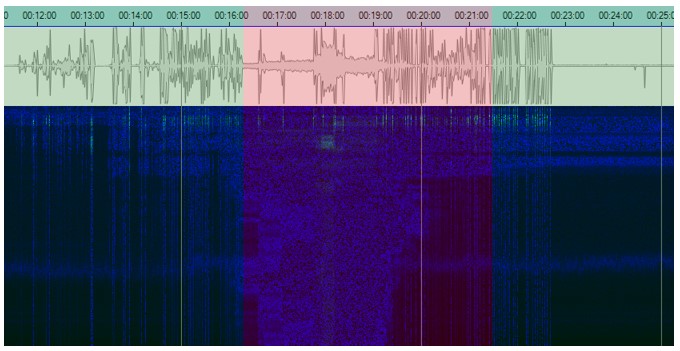

PIPA software identifies leaks and is used as a reporting and verification tool. PIPA has also developed software for data analysis and report production purposes.

65mm CAMERA MODULE SPECIFICATIONS

  • Acrylic Lens: 45mm
  • Image Sensor: 1/4” Colour CCD
  • Video System: PAL
  • Pixels: 510×492
  • Resolution: 360 TV Lines
  • Illumination: 0.2 Lux at f1.2
  • Storage Temp: -30 to 60 degree C
  • Working Temp: -10 to 45 degree C
  • Power Supply: DC 6 -12v
  • Current: 80mA max
  • Waterproof Pressure tested 12 BAR
  • Dimensions (LxW): 195mm x 65mm
  • Weight: 290g

 All PIPA products are manufactured using MIC compliant materials and are supplied with a PIPA potable passport for service history and hygiene verification.

For more information on the Flowrider LiteTM please contact sales@pipa-uk.com
