Hydrocam TM

Hydrocam TM Water Pipe CCTV Inspection System

Fully pressure rated camera system with seal arrangement and recording station for video capture and encoder text overlay.

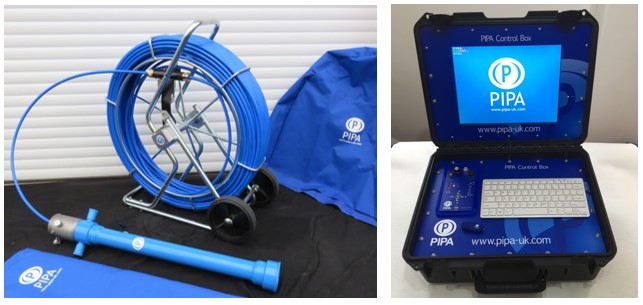

Suitable for use in pipe sizes from 90mm and above. This system consists of a detachable 35mm high resolution colour camera head – with scratch proof sapphire lens glass; high intensity, white LED lighting; a range of centralising skids and a robust coiler frame – with 105 metres of 12mm semi-rigid push rod. This connects to a Compact Control Box – a rugged military spec box that has an integrated 15″ flat screen monitor and keyboard controls and records directly on to portable memory USB drive.

The system comes complete with on-screen meterage overlay, text generator and will operate at 240v AC with integrated rechargeable batteries for use where no mains power is available.

System comprises:

  • Fully portable splash proof control box with USB recording device
  • 3 metre connecting lead
  • 105 metre semi rigid rod cable
  • Ruggedized coiler cage with encoder unit
  • Seal housing with chlorination port for use in potable water
  • Sponge swab set
  • 2x35mm stainless steel camera heads
  • Centralising skid for camera
  • Centralising skid for cable
  • Camera stainless steel Key Set (2)
  • Spare seal set package
  • Standpipe with vent (double quick release)
  • Camera case
  • Lead and seal carry case
  • Standpipe Bag
  • Drum Bag
  • Potable passport
  • 2 days training package

Specifications

Camera Size 35mm
Pressure rated 12 BAR
Suitable for pipe size 90mm and above
Reel length 105 metres
Rod type 12mm semi rigid pushrod (other rods available)
Recorder Portable memory USB drive

35mm CAMERA MODULE SPECIFICATIONS

  • Sapphire Lens: 3.6mm
  • Image Sensor: 1/4” Colour CCD
  • Video System: PAL
  • Pixels: 510×492
  • Resolution: 360 TV Lines
  • Illumination: 0.2 Lux at f1.2
  • Storage Temp: -30 to 60 degree C
  • Working Temp: -10 to 45 degree C
  • Power Supply: DC 6 -12v
  • Current: 80mA max
  • Waterproof Pressure tested 12 BAR
  • Dimensions (LxW): 195mm x 35mm
  • Weight: 470g

 All PIPA products are manufactured using MIC compliant materials and are supplied with a PIPA potable passport for service history and hygiene verification.

For more information on the HydrocamTM please contact sales@pipa-uk.com
