PIPA Pipepod STM

  • The unique leak detection product enters a pipeline via a metered boundary box outlet
  • The 50 metre system is fully portable with rechargeable battery powered supply
  • Accurate leak identification and location within pressurised potable water service pipelines from 12mm diameter and above rated to 12 BAR pressure
  • System inserted directly into the pipeline at standard operating pressure through a specially designed chlorination seal arrangement which sanitises the cable prior to insertion
  • Pipepod STM can be pushed up to 50 metres to detect leaks with instant results identified by a trained operative
  • The system can be used in all standard water pipe materials and through different types of access fittings
  • Attachment of signal generator for mains tracing
  • No expensive consumables required
  • A true no dig technology product

System comprises:

  • 2 x 50 metre 5mm flexible rod cables and micro hydrophone technology
  • Ruggedized coiler cage with slip ring
  • Mechanical encoder unit
  • IP rated power box with direct audio output and recorder
  • Seal housing with chlorination port for use in potable water
  • System launching tube with vent valve
  • Sponge swab set
  • Headphone set
  • 3 metre extension lead
  • Spare seal set package
  • Lead and Headphone carry case
  • Launch tube Bag
  • Drum and spares bag
  • PIPA Potable passport

Specifications

Suitable for pipes : 12mm and above

Reel length : 50 metres

Rod type : 5mm semi flexible pushrod

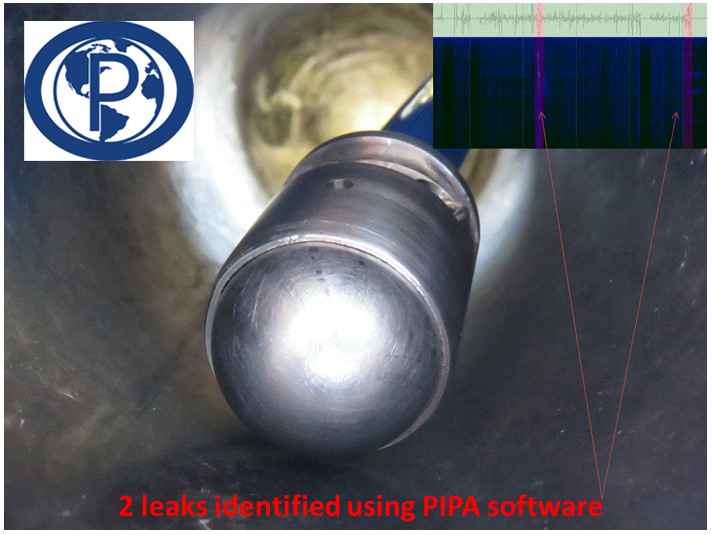

PIPA Software accurately scans through the recorded acoustic data for leak analysis and verification.
